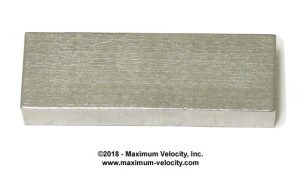

Large Pinewood Derby Tungsten BarLarge Tungsten Bar: We now have a Large Tungsten Bar (2.1 ounces) which is slightly heavier than twelve, 1/4 inch tungsten cubes. It is intended to be placed behind the rear axle, giving an optimum rear weight for rail-riding.

Inventory Clearance Sale

We are clearing inventory on several items including:

– Tungsten & Tundra Weights
– Formula One, Barracuda, and Vector car kits

We don’t have many remaining, so don’t delay.

Can We Help?

If we can help you in any way with your pinewood derby project, or if you have any feedback regarding this newsletter, please Contact Us.


Feature Article
Last Minute Weighting – Consider Steel Hardware
By Randy Davis

Have you been in this situation? The race is tomorrow, the car is needing weight, it’s too late to order online, and the local hobby shop is out of weight. What do you do?

One time-honored solution is to use pennies. Back in the days when pennies were mostly copper, this worked fairly well as copper is denser than steel or zinc. But today, pennies are mostly zinc, so the density is quite low. Weighing ten random pennies, the weight is 0.885 ounce or .0885 ounce per penny. To get two ounces of weight, you would need twenty-three pennies.

Pennies are still the lowest price solution (just twenty-three cents for two ounces). But are there other options? One option that many people have at their house is random steel hardware (nuts, bolts, screws, washers). Many times, these are left over from projects, or assembling a do-it-yourself piece of furniture. One nice thing about steel hardware is that it is denser than zinc (7.86 g/cc versus 7.14 g/cc). Even better, your local hardware store will have a huge assortment of steel parts that you can pick through. (1)

I have wandered through our local Ace Hardware many times, and have a few suggestions on part types, and even on aesthetics. So, let’s dig in.

Hardware Types For Pinewood Derby Weights

There are two primary ways to weight pinewood derby cars. The first is surface weighting (no pockets or holes) and the second is embedded weight. First let’s look at hardware that works as surface weighting, then some hardware for embedding.

Surface Hardware

The first item is called a “Fender Washer”. This type of washer has a small inner diameter (ID) and a larger outer diameter (OD) than a typical washer, so it contains quite a bit of material. They come in various sizes and thicknesses.



Figure 1 – Typical Fender Washer
(Weight of one, 1-5/8-inch fender washer – 0.455 ounce)

A good size for use is a 1-5/8-inch OD fender washer (just barely fits on the surface of a full-width pinewood derby block). These washers are thin enough to go on the bottom of the car, or they can be glued on top of the car. Fender washers do come with an ID much smaller than the one shown in Figure 1, so for the most bang for your buck, get washers with the smallest ID.

Common steel washers can also be used. They weigh much less than a fender washer, so they are best used for trim weighting. I have also used them on a “Speed Bolt” for an aesthetic look.

Figure 2 – Speed Bolt (With “Hardened” Hardware)
(Plans available at Maximum Velocity)

Embedded Weight

There are several types of hardware that can readily be used for embedded weight. These include bolts, dowel pins, and square keys.

Figure 3 –Typical Hex Bolt, Nut and Washer
(Weight of one, 3/8 x 1-inch hex bolt – 0.93 ounce)

Bolts would generally be used if you want the head exposed for an aesthetic look. Our Speed Bolt design uses bolts for just this purpose. Please note that in this design, the rear of the block is shortened so that with the exposed bolt heads at the back the seven-inch length is maintained.

Figure 4 – Alternate Speed Bolt
(Plans available at Maximum Velocity)

Dowel pins are also convenient for embedding. They are essentially steel cylinders of varying diameters and lengths. (2)

Figure 5 – 3/8-inch OD Steel Dowel Pins (quantity 12)
(Weight of one, 3/8 by ½ inch steel dowel pin – 0.245 ounce)
(Available at Maximum Velocity)

Dowel pins come in varying lengths, but I prefer to use shorter length dowel pins so that you can get close to the desired weight and then use a little trim weight (maybe washers) to hit the five ounces.

For weighting thinner cars, square keys work well. The real purpose of a square key is to secure a gear to a shaft. But they stack nicely and work well to fit in underbody weight pockets.

Figure 6 – Typical Square Key

Steel Bar Pinewood Derby Weight

Figure 6 – 3/16 x 1-1/4-inch Square Keys (quantity 16)
(Weight of one, 3/16 x 1-1/4-inch square key – 0.195 ounce)
(Available at Maximum Velocity)

Hardware Colors

Although not really intended for aesthetics, some hardware (3) is available in a few colors (see Figure 7 below – left to right, top to bottom).

  • Steel and zinc-plated – Light silver color
  • Hardened steel – dull gold color (usually mottled)
  • Stainless steel – darker silver color
  • Chrome-plated steel – Shiny silver color
  • Black Oxide – Matte black color
  • Bronze – copper color
  • Brass – light gold color

Figure 7 – Hardware Colors
Photo Source: boltdepot.com

Zinc-plated hardware is the most common and least expensive hardware. The price is higher for the other types.

Conclusion

So, if you get in a bind for pinewood derby weight, or just want to try something different, take a trip to your local hardware store and check out the selection.

(1) Generally, you are better off visiting a hardware store (Ace, True Value, etc.) rather than a home store (Home Depot, Lowes, etc.). Hardware stores generally have a better selection and you can buy just one of an item, whereas many items at the home stores are packaged in quantities.

(2) Please note that purchasing dowel pins and square keys at a hardware store can get expensive. They are much more cost effective when purchased in a quantity, such as what we offer at Maximum Velocity. But if you are in a time crunch, sacrificing a few dollars may be necessary.

(3) Generally, nuts, bolts, washers, and screws are available in various finishes and materials, providing color differences. Other hardware types may be not available in different finishes.
