Designing The Car Body For Performance
By Randy Davis
I am continually amazed at the creativity of pinewood derby builders. My talent (and the talent of my kids) tends toward straight lines and basic geometric shapes. But there is clearly a lot of artistic talent among car builders. Cars take all shapes from minimalist sleek designs to artistic wood carvings. One of the fun aspects of the derby is the wide variety of creative cars that are entered into the race. The intent of this article is not to stifle this creativity. Instead, the intent is to raise awareness that the fastest cars tend to have certain design features in common. Although cars of all shapes and sizes have done well in derby races, my observation is that overall, winning cars tend to have several basic characteristics. Whether you design a car with these characteristics or not is entirely up to you.
Design the car so that it will achieve the maximum weight (typically five ounces). Thus, decide ahead of time what type of material you intend to use for added weight and then ensure that the design can accommodate sufficient added weight to bring the car to the maximum weight.
On the majority of tracks, the center of gravity (COG) of the car should be positioned somewhat less than one inch in front of the rear axle. This gives the car the greatest opportunity to accelerate down the slope while ensuring enough weight on the front wheels to keep the car on the track. To locate the COG at this location a lot of the wood must be removed, and weight must be added around the rear axle. Thus, make sure your design leaves room around the rear axle for the added weight. Also, it is generally best to keep the car at the maximum allowable length (typically 7 inches). With a shorter car, it is difficult to add weight such that the COG is properly located.
Another reason for removing a lot of wood is to focus the added weight in as small of an area as possible. Cars with weight focused in one area will traverse the curve in the track faster than a car with the weight spread out.

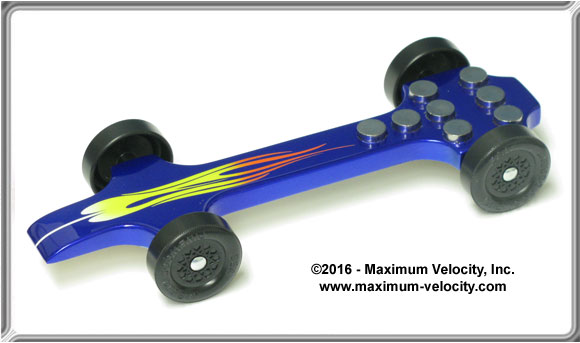

Figure 1 – Minimal Wood
While the amount of effect from wind drag on a derby car is minimal, it is prudent to recognize the presence of wind drag and avoid design features that would increase this effect. So, while I don’t suggest being overly concerned with wind drag, I do suggest using a basically aerodynamic design, and avoiding the use of accessories that could catch air such as sails, streamers, etc. If you implement the first two topics above, you will likely have a low-profile car. You can further streamline the car by rounding the back of the car, and adding fenders in front and behind the front wheels, and in front of the rear wheels.
Another design factor that affects the speed of a car is left-to-right symmetry. By this I mean that the left side of the car should be a mirror image of the right side of the car. (For an example of a non-symmetrical car, click here:

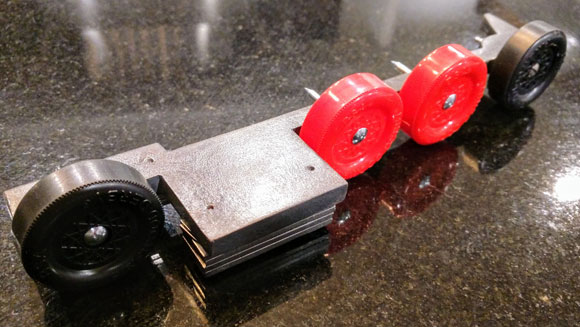

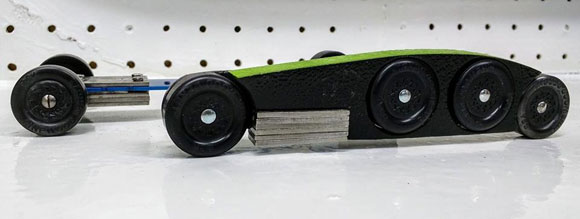

Figure 2 – Non-symmetrical Car
Why is symmetry important? Because a car that is not symmetrical will be heavier on one side, and will tend to steer to that side. Thus, after the wheels/axles are aligned, there will be an increase in friction as the car tries to turn, but the wheels/axles prevent the turn. This extra friction will slow the car down.
Many cars run with a raised front wheel, which will slightly shift the weight. Careful weight placement can correct this, but usually the shift effect from a raised wheel is virtually non-existent.
Avoid designs that have a sharp pointed front end. There are two reasons for this caution. The first is that most tracks have round rods that hold the cars at the starting line. A car with a sharp point will tend to slip off the rod, which could cause the car to start at an angle. The second reason for avoiding a sharp point is that the point may not trigger the finish line sensor until the car has progressed a little bit past the finish line. This could be important in a close race. So, make sure that the nose of the car is blunt so that it will sit properly at the starting line and properly trip the finish line. I recommend a minimum of 3/4 inch width at the front of the car.
Maximum Wheel Base
If allowed by the local rules, extend the wheel base to the maximum length. Long wheelbase cars go straighter, are more stable, and allow the COG to be located further towards the rear of the car. For the opposite reasons do not shorten the wheelbase.

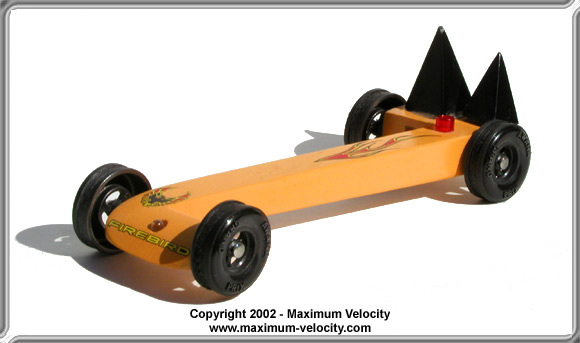

Figure 3 – Maximum Wheelbase
As mentioned previously, a raised front wheel is a common speed technique. A car with a raised wheel is easier to align, and will start rolling faster than a car will all four wheels on the ground.
One of the most overlooked topics for novice racers is alignment. Significant performance improvements can be gained with proper alignment, especially rail-rider alignment. I won’t go into the “How” of rail-rider alignment in this article (1), but the “Why” is as follows:
– Car travels in a straight line, thus traveling the shortest distance.
– Rear wheels, which carry most of the car’s weight, avoid contacting the guide rail.
– The raised wheel avoids the guide rail.
– The front steering wheel rolls on the guide rail instead of scraping on the rail.
Figure 4 – Rear View of Car Set to Rail-ride
The basic design characteristics listed above are very common in high performing cars. By implementing these characteristics, you will be on the path of creating a competitive pinewood derby car.
(1) For the “How” of rail-riding, please see:
Volume 14, Issue 4, “Rail-Riding – Getting that Extra Speed“.
Volume 16, Issue 10, “Rail-Rider Alignment Walk-through”.
One day a little girl was sitting and watching her mother do the dishes at the kitchen sink. She suddenly noticed that her mother had several strands of white hair sticking out in contrast to her otherwise brunette hair.
She looked at her mother and inquisitively asked, “Why are some of your hairs white, Mom?”
Her mother replied, “Well, every time that you do something wrong and make me cry or unhappy, one of my hairs turns white.”
The little girl thought about this revelation for a while and then said, “Mom, how come ALL of grandma’s hairs are white?”
Polished Rail Rider Axles – $3.00 Off

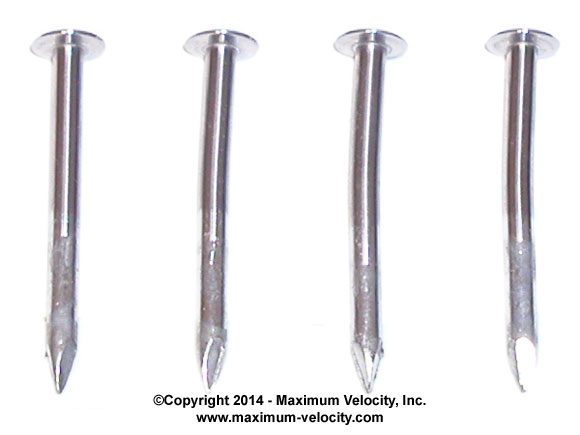

Say “Goodbye” to burrs, crimp marks, polishing, and bending! These BSA Pinewood Derby Speed Axles are precision-made to replicate the official BSA nail, but without the burrs and crimp marks. They are polished to 3,000 grit, and then bent to allow for rail-rider alignment. Just lube, align, and race.
Through November 28, 2017, you can get a set Polished Rail Rider Axles for $3.00 off. To take advantage of this limited time offer, add part 4035 to your shopping cart, and use coupon code NOV15NL during checkout.
Pinewood Derby Car Showcase
Some “Outlaw Cars” for your enjoyment.
Jet Bus – Brian Tomblin

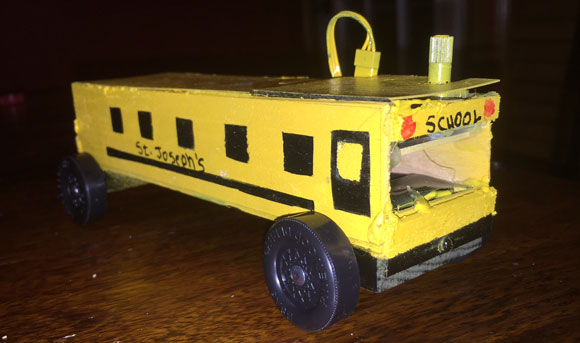

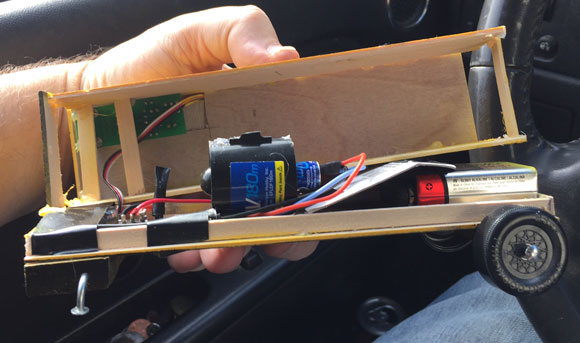

I built a ducted fan bus I thought you would enjoy. It was really ugly and everyone was making fun of it in the pits. I was checking people in and could hear them behind me. But it was a “sleeper” in street racing slang. Of course, it blew everything away.
Plum Loco – Eric Werner

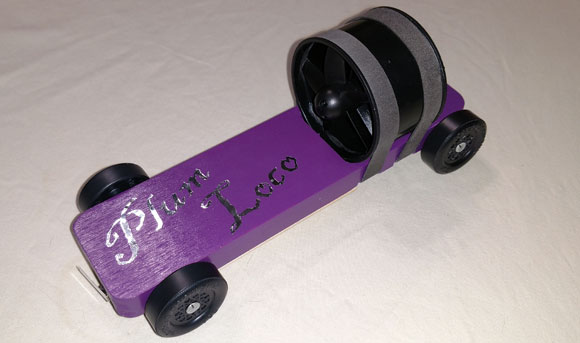

I built this fan car, Plum Loco, last year as a pre-race demonstration. At that time, I hid the true nature of the fan, simply lining the car up with no charge, and letting it run. When, of course, nothing happened, I charged it with a palmed 9v battery as I slowly walked back to the starting line. The second release, of course, saw the fan kick into action, and Plum Loco lived up to its appearance.
