The Big Rig Kit
by Randy Davis

In years past, BSA offered a unique kit, “The Big Rig – 18 Wheeler”. Basically, it was a pinewood-derby style semi-truck and trailer.

The Big Rig

Although they are no longer offered by BSA, occasionally one will show up on eBay. Being curious, I acquired a kit and decided to put one together.

Immediately upon opening the box, I realized that this would not be a simple pinewood derby car build. The part count is considerably higher than a pinewood derby car kit, and the kit includes my two least favorite types of wood, balsa and hardboard.

The Big Rig Parts

The parts include:

Trailer Parts

  • 6 sides made of hardboard
  • Slotted pine for trailer frame

Cab Parts

  • Slotted pine for cab frame
  • Balsa for cab, roof and fenders
  • Pine for front bumper
  • Dowels for stacks and fuel tanks
  • 18 wheels
  • 8 long nail axles (for two wheels)
  • 2 short nail axles (for one wheel at the front)
  • 1 Pivot Pin
  • Instructions

Basic Assembly
Let’s begin. First we will need several small clamps and some wood glue. Then glue the trailer together piece by piece, allowing the glue to dry on each part before proceeding. One important point is to make sure that each piece is perpendicular to each other. I used a spare pinewood derby block as a guide to keep the sides square.
Next, we’ll move to the cab. The balsa cab is glued to the base, and then the fenders and roof are shaped and attached. This is where I ran into the first hiccup. The templates in the instructions don’t really match the photo on the box, nor do they fit well on the cab. So I had to do a little jigsaw puzzle work to make them look right. You can sort of see this in the photo below.

Basic Assembly

After attaching the fenders, the body is complete and ready for sanding.

Finishing
I mentioned earlier that I don’t like to work with balsa or hardboard. Balsa is very porous, so it must be sealed before painting. Hardboard just doesn’t sand well.

To seal the balsa, I coated the entire cab with a thin layer of wood filler, and fixed some dings on the trailer with Bondo. After priming, I made further touch-ups with Bondo. Next, I painted the entire assembly blue. Note that the cab and trailer are separate units. I just set them together for the photos.

Painted Big Rig

The paint is not perfect; I think the paint was a bit old and the temperature was really too high for painting (I think we hit 110 during the few days that I was painting — but I painted in the morning when it was only 90!).

Completion
Now it was time to add the details. I used the dowel rods for the fuel tanks (painted silver), but decided to use aluminum tubing for the exhaust pipes. These parts were attached with epoxy. The windows were created with black window material.

I had some wide yellow pin striping which was used for the side stripe. The letters were problematic until I found out that there are several on-line sign shops that offer custom lettering. I went with www.customonlinesigns.com. Although you can get exactly what you want, it isn’t cheap. For two sets of lettering in my font, style and color, the shipped cost was $30.71.

Finally, the wheels and axles were attached and the swivel pin was inserted (to attach the trailer to the cab). I then declared the project complete. I certainly could have done more detail work such as lights, front grill, etc. — maybe another time.

Completed Big Rig

To get an idea of the type of detail that can be added, here is a Big Rig created by Mark Robison.

Mark’s Big Rig

Conclusion
If you really enjoy modeling projects, then give this project a try. Just make sure you have the shelf space to displace your Big Rig.

Addendum – Track Considerations
Due to the length of the Big Rig kit, the vehicle cannot be directly staged on most tracks. So, an extension must be added at the starting line. In addition, the vehicle may be too high to fit under the finish line. So, you may need to manually judge a Big Rig race.


Pinewood Derby Car Showcase

Some additional Big Rigs from Andy and Noah Holzer.

Knight Rider – Noah Holzer


This was my last year of Cub Scouts so I decided to build one of my favorite cars for my last Pinewood Derby. KITT was from an old television show called Knight Rider, the car is an ’82 Firebird, Trans Am.

My dad found a website that sells a scanner (the light in the front of the car). It was for a larger scale car but we made it work with my pinewood derby car. I had to learn to solder to get all of the small wires connected to the circuit board. KITT came in second place in the Webelo II race, it also got an award for Coolest Looking Car.

My dad worked to get a Big Rig race this year so we built two Big Rigs for the race. We made mine look like the FLAG Mobile Unit 01, the semi that fixed KITT on the television show.

Not only did I beat every derby car in the stock category, I took my car over to the pro stock track and had an informal race with the fastest cars of the night (all gravity driven). The winning pro stock car was owned by a man who said his car had never been beaten in a single heat in years of racing. We raced twice… I beat him twice!

The King – Andy Holzer

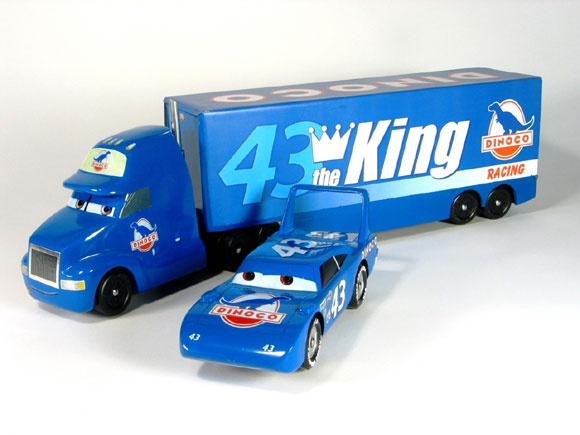

I knew what my first Big Rig would be, the King Hauler. I had never built a Big Rig, but the first time I saw one I thought they were very cool. So when BSA released their version for the 100th Anniversary of Scouting I needed to get one to build.

The only trouble with the BSA kit is that one of the cardboard boxes that the kit comes in is also used for the trailer box; that would just not do. I built a box that could actually house The King. It turns out that all of the five entries in this year’s Big Rig Race had built their own trailers out of wood.

Building a Big Rig is not much different than building a car (a lot more wheels and axles to prepare), but the weight seems to sneak up quicker (our max weight is 25 ounces). In any case, I would highly encourage your group to have a Big Rig race.
