Pinewood Derby Car Plans 9 provides you with three winning car designs: the Jaguar, the Annihilator, and the Raptor. All plans include templates and step-by-step instructions, and the plans provide for optimal quantity of weight, optimal weight placement for both the standard (scouting) wheel base and the extended wheel base, and much more.

Clear
SKU: 1060 Category:

Description

Whether you are involved in a Pinewood Derby® race through Cub Scouts or Boy Scouts, an Awana Grand Prix(1), or a similar race through Royal Rangers, Indian Guides, Christian Service Brigade, or another organization, Maximum Velocity! Car Plans 9 provides you with three car design plans to turn your car kit into a winning car. All plans include templates and step-by-step instructions, and the plans provide for:

Also included is a construction timetable, woodworking tips, weigh-in instructions, thoughts on adult involvement in the pinewood derby car building process, and a bibliography. Most importantly, all of the information is in an easy to read format with many helpful drawings and diagrams.

The three plans in the Car Plans 9 booklet are relatively simple to build, thus, they are ideal for those who have had limited experience with woodworking and with pinewood derby racing.

Here are examples of some of the cars that can be built using the plans in the booklet. Note that either wheel base can be used with any design or option(2), and that the color and any desired decals are selected by the builder.

(1)Templates are not provided for the Awana 'centered' wheelbase. Check your local rules to see if the standard or extended wheel base can be used.
(2)The Raptor is only available in standard wheelbase.

The Jaguar

The JAGUAR is modeled after the classic XKE. The body is very agressively weighted with tungsten cylinders for a very fast ride.

In addition to the car kit and basic hand tools, you will need the following supplies to build THE JAGUAR:

  • 1/2 ounce Tungsten Cylinders (Available from Maximum Velocity)
  • Tungsten Disks or Putty (Available at Maximum Velocity)
  • 26/64 inch Brad Point drill bit (Available at Maximum Velocity)

The car in the photo sports decals and black window material on top of lacquer paint.





The JAGUAR is modeled after the classic XKE. The body is very agressively weighted with tungsten cylinders for a very fast ride.

In addition to the car kit and basic hand tools, you will need the following supplies to build THE JAGUAR:

  • 1/2 ounce Tungsten Cylinders (Available from Maximum Velocity)
  • Tungsten Disks or Putty (Available at Maximum Velocity)
  • 26/64 inch Brad Point drill bit (Available at Maximum Velocity)

The car in the photo sports decals and black window material on top of lacquer paint.

The Annihilator

The ANNIHILATOR is very low, sleek, fast, and very aggressively weighted (1-2/3 ounces of weight are located behind the rear axle). When aligned for Rail-Riding (recommended), the Annihilator soars down the track, eliminating the competition.

In addition to the car kit and basic hand tools, you will need the following supplies to build THE ANNIHILATOR:

  • 1/4 inch Tungsten Bars (Available from Maximum Velocity)
  • 3/16 inch Tungsten Cubes (Available at Maximum Velocity)
  • 1/4 inch Brad Point or Forstner drill bit
  • 1/4 inch wood chisel

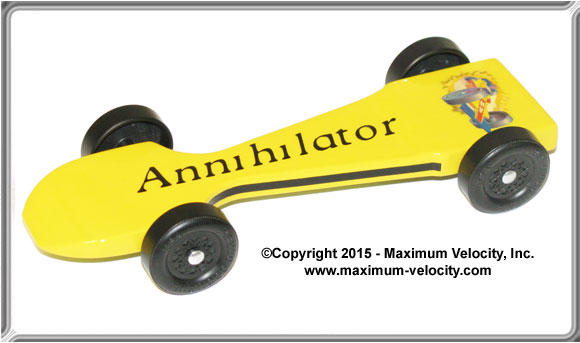

The car in the photo sports lacquer paint with yellow pinstriping, a Maximum Velocity decal, and custom lettering.

The ANNIHILATOR is very low, sleek, fast, and very aggressively weighted (1-2/3 ounces of weight are located behind the rear axle). When aligned for Rail-Riding (recommended), the Annihilator soars down the track, eliminating the competition.

In addition to the car kit and basic hand tools, you will need the following supplies to build THE ANNIHILATOR:

  • 1/4 inch Tungsten Bars (Available from Maximum Velocity)
  • 3/16 inch Tungsten Cubes (Available at Maximum Velocity)
  • 1/4 inch Brad Point or Forstner drill bit
  • 1/4 inch wood chisel

The car in the photo sports lacquer paint with black pinstriping, a Maximum Velocity decal, and custom lettering.



The Raptor

The RAPTOR looks aggressive, and is very aggressively weighted (1-2/3 ounces of weight are located behind the rear axle). When aligned for Rail-Riding (recommended), the Annihilator soars down the track, eliminating the competition.

In addition to the car kit and basic hand tools, you will need the following supplies to build THE RAPTOR:

  • 1/4 inch Tungsten Bars (Available from Maximum Velocity)
  • 3/16 inch Tungsten Cubes (Available at Maximum Velocity)
  • 1/4 inch Brad Point or Forstner drill bit
  • 1/4 inch wood chisel

The car in the photo sports lacquer paint with a paint stencil designed specifically for the RAPTOR (available from Maximum Velocity). The "eyes" are from gold, adhesive-backed vinyl.
